CAS Number: 563-80-4
Sum Formula: C5H10O
Molar Mass: 86.1 g/mol
German Synonyms: 1,1-Dimethylaceton | 3-Methyl-2-butanon
English Synonyms: Methylisopropyl ketone | 3-Methyl-2-butanone
EC Index Number: 606-007-00-0
EC Number: 209-264-3
Temperature Class: T1
Explosion Group: IIA

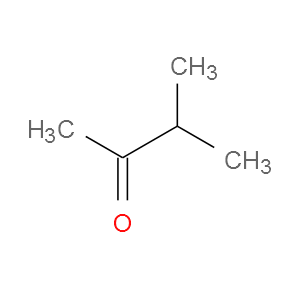

Structural Formula 3-Methyl-2-butanone

Disclaimer: The CLP/GHS classification is not regularly updated in Chemsafe. For up-to-date information, please use the ECHA database. ( https://echa.europa.eu/en/information-on-chemicals )

GHS Hazard and Category:
  • Flam. Liq. 2: flammable liquids, category 2
GHS Pictogram:
pictogram flammable





GHS Signal Word: Danger
GHS Hazard Statement:
  • H225: Highly flammable liquid and vapour.

Antoine parameters
1 DECHEMA 6.15738 Torr UTI: 1100-1521-23122/0-39
UTI: 1100-1521-23122/0-39;
Line no Upper temperature limit of Antoine equation Lower temperature limit of Antoine equation Antoine constant C Antoine constant B Antoine constant A
  • recommended value
  • saturated
  • property of pure substance
  • recommended value
  • saturated
  • property of pure substance
  • recommended value
  • by regression
  • saturated
  • property of pure substance
  • recommended value
  • by regression
  • saturated
  • property of pure substance
  • defined value
  • by regression
  • saturated
  • property of pure substance
1 < 133 °C > -2 °C 169.95 °C 865.601 °C 6.15738 Torr
Bibliographic data
Author DECHEMA
Title Antoinekonstanten
Database PTB
Publisher Detherm
Boiling point
1 1963 Nabert, K.; Schön, G. 1013.25 hPa 94 °C UTI: 1000-1521-23115/0-39
UTI: 1000-1521-23115/0-39;
Line no Boiling temperature Pressure
  • defined value
  • at atmospheric pressure
  • property of pure substance
1 94 °C 1013.25 hPa
Bibliographic data
Author Nabert, K.; Schön, G.
Year 1963
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (mit 6. Nachtrag)
Publisher Deutscher Eichverlag
Publisher City Braunschweig
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Language GERM
Density
1 1963 Nabert, K.; Schön, G. 1013.25 hPa 20 °C 0.81 g/cm3 UTI: 1000-1521-23116/0-39
UTI: 1000-1521-23116/0-39;
Line no Density Temperature Pressure
  • defined value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • at atmospheric pressure and room temperature
1 0.81 g/cm3 20 °C 1013.25 hPa
Bibliographic data
Author Nabert, K.; Schön, G.
Year 1963
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (mit 6. Nachtrag)
Publisher Deutscher Eichverlag
Publisher City Braunschweig
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Language GERM
Melting point
1 1963 Nabert, K.; Schön, G. -92 °C UTI: 1000-1521-23114/0-39
UTI: 1000-1521-23114/0-39;
Line no Melting temperature
  • defined value
  • at atmospheric pressure
  • property of pure substance
1 -92 °C
Bibliographic data
Author Nabert, K.; Schön, G.
Year 1963
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (mit 6. Nachtrag)
Publisher Deutscher Eichverlag
Publisher City Braunschweig
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Language GERM
Relative gas density
1 1963 Nabert, K.; Schön, G. 2.97 UTI: 1000-1521-23117/0-39
UTI: 1000-1521-23117/0-39;
Line no Relative gas density
  • defined value
  • property of pure substance
1 2.97
Bibliographic data
Author Nabert, K.; Schön, G.
Year 1963
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (mit 6. Nachtrag)
Publisher Deutscher Eichverlag
Publisher City Braunschweig
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Language GERM
Solubility in water
1 2009 Physikalisch-Technische Bundesanstalt (PTB) 20 °C 6 g/l UTI: 228-1521-23112/0-39
UTI: 228-1521-23112/0-39;
Line no Solubility in water Temperature
  • defined value
  • property of pure substance
  • property of pure substance
1 6 g/l 20 °C
Bibliographic data
Author Physikalisch-Technische Bundesanstalt (PTB)
Year 2009
Title Wasserlöslichkeit
Database PTB
Publisher Datenbank PTB-Lab. 3.43
Language GERM
  • The oxidizing agent is air with an oxygen content of 20.95 % by volume. In the data base it is usually not specified as mixture component. Exceptions are highlighted.
  • Pressure values are absolute, not gauge pressures.
  • Impurities can strongly influence characteristic safety data, particulary if the properties of the impurity considerably deviate from the respective properties of the pure substance.
  • Safety characteristics are only displayed if evaluated data are available.
  • Values can be cited by using the UTI number of the table (Uniform Table Identifier).
  • Color Codes:         recommended value             no recommendation               do not use value

Autoignition Temperature
1 1963 Nabert, K.; Schön, G. 475 °C UTI: 1000-1521-23119/0-39
UTI: 1000-1521-23119/0-39;
Line no Autoignition Temperature
  • recommended value
  • international standard method
  • property of pure substance
1 475 °C [A]
[A] IEC 79-4: Method of Test for Ignition Temperature, Electrical Apparatus for Explosive G; Replaced by IEC-60079-20-1 in 1975
Bibliographic data
Author Nabert, K.; Schön, G.
Year 1963
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (mit 6. Nachtrag)
Publisher Deutscher Eichverlag
Publisher City Braunschweig
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Language GERM
Flash point
1 1963 Nabert, K.; Schön, G. -1 °C UTI: 1000-1521-23118/0-39
UTI: 1000-1521-23118/0-39;
Line no Flash point
  • recommended value
  • closed cup
  • property of pure substance
1 -1 °C
Bibliographic data
Author Nabert, K.; Schön, G.
Year 1963
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (mit 6. Nachtrag)
Publisher Deutscher Eichverlag
Publisher City Braunschweig
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Language GERM
Explosion limits
Lower explosion limit
1 1963 Nabert, K.; Schön, G. 1.4 Vol% ± 10 % UTI: 1000-1521-23121/0-39
UTI: 1000-1521-23121/0-39;
Line no Lower explosion limit
  • recommended value
  • property of pure substance
1 1.4 Vol% ± 10 %
2 50 g/m3 ± 10 % ⚠
⚠ The reference for the specification in g/m3 is the molar volume at 20 °C
Bibliographic data
Author Nabert, K.; Schön, G.
Year 1963
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (mit 6. Nachtrag)
Publisher Deutscher Eichverlag
Publisher City Braunschweig
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Language GERM
Upper explosion limit
1 1963 Nabert, K.; Schön, G. 8 Vol% ± 5 % UTI: 1000-1521-23120/0-39
UTI: 1000-1521-23120/0-39;
Line no Upper explosion limit
  • recommended value
  • property of pure substance
1 8 Vol% ± 5 %
2 290 g/m3 ± 5 % ⚠
⚠ The reference for the specification in g/m3 is the molar volume at 20 °C
Bibliographic data
Author Nabert, K.; Schön, G.
Year 1963
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (mit 6. Nachtrag)
Publisher Deutscher Eichverlag
Publisher City Braunschweig
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Language GERM
Maximum experimental safe gap
1 2008 Physikalisch-Technische Bundesanstalt (PTB) 0.92 mm UTI: 4028-1521-23123/0-39
UTI: 4028-1521-23123/0-39;
Line no Maximum experimental safe gap
  • recommended value
  • experimental
  • property of pure substance
1 0.92 mm [1]
[1] measured at 20 °C and 3.57 Vol%
Bibliographic data
Author Physikalisch-Technische Bundesanstalt (PTB)
Year 2008
Title Sicherheitstechnische Kenngrößen: Messwerte 2008 des PTB-Laboratoriums 3.41
Database PTB
Publisher PTB-Lab. 3.41
Language GERM
Stoichiometric fraction of combustible substance in mixture with air
1 2005 Physikalisch-Technische Bundesanstalt (PTB) 2.9 Mol% UTI: 220-1521-23111/0-39
UTI: 220-1521-23111/0-39;
Line no Stoichiometric fraction of combustible substance in mixture with air
  • recommended value
  • property of pure substance
1 2.9 Mol%
Bibliographic data
Author Physikalisch-Technische Bundesanstalt (PTB)
Year 2005
Title Berechnete molare stöchiometrische Brenngasanteile in Luft (c_stoech)
Database PTB
Publisher Datenbank PTB-Lab. 3.43
Language GERM

No entry in database
