CAS Number: 590-18-1
Sum Formula: C4H8
German Synonyms: cis-But-2-en | (Z)-2-Butylen | cis-1,2-Dimethylaethylen | cis-1,2-Dimethylethylen | cis-1,2-Dimethylaethen | cis-1,2-Dimethylethen | cis-Butylen-2 | cis-Buten-2 | cis-2-Butylen | cis-2-Buten | (Z)-2-Buten
English Synonyms: cis-Butylene-2 | cis-Butene-2 | cis-1,2-Dimethylethylene | cis-2-Butylene | cis-2-Butene | (Z)-2-Butene
EC Index Number: 601-012-00-4
EC Number: 209-673-7
Properties: flammable, gas
Explosion Group: IIB

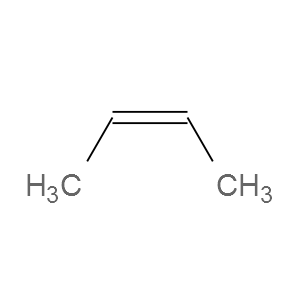

Structural Formula (Z)-2-Butene

Disclaimer: The CLP/GHS classification is not regularly updated in Chemsafe. For up-to-date information, please use the ECHA database. ( https://echa.europa.eu/en/information-on-chemicals )

GHS Hazard and Category:
  • Flam. Gas 1: flammable gases, category 1
  • Press. Gas: Compressed gases
GHS Pictogram:
pictogram flammable
pictogram compressed gas





GHS Signal Word: Danger
GHS Hazard Statement:
  • H220: Extremely flammable gas.

Boiling point
1 1990 Nabert, K.; Schön, G. 4 °C UTI: 5510-013-002/20180208
UTI: 5510-013-002/20180208;
Line no Boiling temperature Critical temperature Melting temperature Relative gas density Molar mass
  • defined value
  • at atmospheric pressure
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • at atmospheric pressure
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 4 °C 162 °C -139 °C 1.94 56.1 g/mol
Bibliographic data
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author Nabert, K.; Schön, G.
Year 1990
Publisher Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language GERM
2 2007 BAM 3.7 °C UTI: 5592-002-001/20111005
UTI: 5592-002-001/20111005;
Line no Boiling temperature
  • defined value
  • at atmospheric pressure
  • property of pure substance
1 3.7 °C
Bibliographic data
Year 2007
Title Gas Encyclopedia
Database BAM
URL https://encyclopedia.airliquide.com/
Language ENGL
Critical density
1 Critical Data 2016 BAM 0.239 g/cm3 UTI: 5000-027-003/20111005
Critical Data
UTI: 5000-027-003/20111005;
Line no Critical temperature Critical pressure Critical density
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 162.4 °C 4210 kPa 0.239 g/cm3
Bibliographic data
Year 2016
Title Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database BAM
Publisher Datenbank BAM-Projekt CHEMSAFE
Language GERM
Critical point
1 1990 Nabert, K.; Schön, G. 162 °C UTI: 5510-013-002/20180208
UTI: 5510-013-002/20180208;
Line no Boiling temperature Critical temperature Melting temperature Relative gas density Molar mass
  • defined value
  • at atmospheric pressure
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • at atmospheric pressure
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 4 °C 162 °C -139 °C 1.94 56.1 g/mol
Bibliographic data
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author Nabert, K.; Schön, G.
Year 1990
Publisher Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language GERM
2 Critical Data 2016 BAM 162.4 °C UTI: 5000-027-003/20111005
Critical Data
UTI: 5000-027-003/20111005;
Line no Critical temperature Critical pressure Critical density
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 162.4 °C 4210 kPa 0.239 g/cm3
Bibliographic data
Year 2016
Title Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database BAM
Publisher Datenbank BAM-Projekt CHEMSAFE
Language GERM
Density
1 2003 BAM 101.3 kPa 0 °C 2.582 kg/m3 UTI: 5560-016-001/20111005
UTI: 5560-016-001/20111005;
Line no Temperature Pressure Density
  • Parameter of the measurement
  • property of pure substance
  • Parameter of the measurement
  • property of pure substance
  • defined value
  • property of pure substance
1 0 °C 101.3 kPa 2.582 kg/m3
Bibliographic data
Year 2003
Title Gasatlas
Database BAM
Language GERM
2 2016 BAM 101.3 kPa 0 °C 2.582 kg/m3 UTI: 5016-001-001/20111005
UTI: 5016-001-001/20111005;
Line no Temperature Pressure Density
  • Parameter of the measurement
  • property of pure substance
  • Parameter of the measurement
  • property of pure substance
  • defined value
  • property of pure substance
1 0 °C 101.3 kPa 2.582 kg/m3
Bibliographic data
Year 2016
Title Recommended Densities of Pure Gases
Database BAM
Language GERM
Melting point
1 1990 Nabert, K.; Schön, G. -139 °C UTI: 5510-013-002/20180208
UTI: 5510-013-002/20180208;
Line no Boiling temperature Critical temperature Melting temperature Relative gas density Molar mass
  • defined value
  • at atmospheric pressure
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • at atmospheric pressure
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 4 °C 162 °C -139 °C 1.94 56.1 g/mol
Bibliographic data
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author Nabert, K.; Schön, G.
Year 1990
Publisher Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language GERM
Molar mass
1 1990 Nabert, K.; Schön, G. 56.1 g/mol UTI: 5510-013-002/20180208
UTI: 5510-013-002/20180208;
Line no Boiling temperature Critical temperature Melting temperature Relative gas density Molar mass
  • defined value
  • at atmospheric pressure
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • at atmospheric pressure
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 4 °C 162 °C -139 °C 1.94 56.1 g/mol
Bibliographic data
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author Nabert, K.; Schön, G.
Year 1990
Publisher Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language GERM
Relative gas density
1 1990 Nabert, K.; Schön, G. 1.94 UTI: 5510-013-002/20180208
UTI: 5510-013-002/20180208;
Line no Boiling temperature Critical temperature Melting temperature Relative gas density Molar mass
  • defined value
  • at atmospheric pressure
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • at atmospheric pressure
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 4 °C 162 °C -139 °C 1.94 56.1 g/mol
Bibliographic data
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author Nabert, K.; Schön, G.
Year 1990
Publisher Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language GERM
2 2006 2 UTI: 5594-010-001/20111005
UTI: 5594-010-001/20111005;
Line no Relative gas density
  • defined value
  • property of pure substance
1 2
Bibliographic data
Year 2006
Title DIN EN ISO 14912 Gas analysis - Conversion of gas mixture composition data (ISO 14912 :2003) German version EN ISO 14912:2006
Institution DIN,Deutsches Institut für Normung e.V.
Language ENGL
  • The oxidizing agent is air with an oxygen content of 20.95 % by volume. In the data base it is usually not specified as mixture component. Exceptions are highlighted.
  • Pressure values are absolute, not gauge pressures.
  • Impurities can strongly influence characteristic safety data, particulary if the properties of the impurity considerably deviate from the respective properties of the pure substance.
  • Safety characteristics are only displayed if evaluated data are available.
  • Values can be cited by using the UTI number of the table (Uniform Table Identifier).
  • Color Codes:         recommended value             no recommendation               do not use value

Autoignition Temperature
1 1965 Zabetakis, M. G. 325 °C UTI: 5511-025-001/20111005
UTI: 5511-025-001/20111005;
Line no Lower explosion limit Upper explosion limit Autoignition Temperature
  • property of pure substance
  • property of pure substance
  • property of pure substance
1 1.7 Vol% 9.7 Vol% 325 °C
Bibliographic data
Title Flammability Characteristics of Combustible Gases and Vapors (Bulletin 627)
Author Zabetakis, M. G.
Year 1965
Abstract English Summary of limits of flammability and ignition temperatures of individual gases and vapors in air at atmospheric pressure. Appendix A, Table A-1. Explosion ranges, limits of flammability, maximum oxygen contents, and other safety data of flammable gas mixtures.
Abstract German Eine Zusammenstellung der Explosionsgrenzen und der Zündtemperaturen einiger brennbarer Gase und Dämpfe in Luft bei Atmosphärendruck; Appendix A, Tafel A-1. Explosionsbereiche, Explosionsgrenzen, maximale Sauerstoffanteile und andere sicherheitstechnische Kenngrößen von brennbaren Gasgemischen.
Document Number Zabetakis
Institution U.S. Bureau of Mines
URL https://www.osti.gov/servlets/purl/7328370
Publisher United States Government Printing Office
Publisher City Washington
Language ENGL
2 1984 325 °C UTI: 5541-001-001/20111005
UTI: 5541-001-001/20111005;
Line no Autoignition Temperature
  • property of pure substance
1 325 °C
Bibliographic data
Title Fire Hazard Properties of Flammable Liquids, Gases, and Volatile Solids Table
Year 1984
Publisher National Fire Protection Association
Publisher City Quincy, MA
Pages 9-95
96
Language ENGL
3 1985 Kuchta, J. M. 325 °C UTI: 5513-008-001/20111005
UTI: 5513-008-001/20111005;
Line no Lower explosion limit Upper explosion limit Autoignition Temperature
  • 25 °C, 1 bar
  • property of pure substance
  • 25 °C, 1 bar
  • property of pure substance
  • property of pure substance
1 1.7 Vol% 9.7 Vol% 325 °C
Bibliographic data
Title Investigation of Fire and Explosion Accidents in the Chemical, Mining, and Fuel-Related Industries - A Manual (Bulletin 680)
Author Kuchta, J. M.
Year 1985
Abstract English Summary of explosion limits, flash points, ignition temperatures and chemical-physical data of liquid and gaseous compounds (gaseous combustion in air at atmospheric pressure); Appendix A
Abstract German Zusammenstellung von Explosionsgrenzen, Flammpunkten, Zündtemperaturen und chemisch-physikalischen Daten von Flüssigkeiten und Gasen (Explosion in der Gasphase bei Atmosphärendruck); Appendix A
Document Number DEDO-117
Institution U.S. Bureau of Mines
Publisher United States Government Printing Office
Publisher City Washington
Language ENGL
Limiting value for flammability (Tci)
1 2016 BAM 3.3 Mol% UTI: 5009-040-001/20111005
UTI: 5009-040-001/20111005;
Line no Limiting value for flammability (Tci)
  • recommended value
  • EU-standard
  • property of pure substance
1 3.3 Mol%
Bibliographic data
Year 2016
Title Recommended Tci values of Gases for Determination of fire potential for the selection of cylinder valve outlets 4.6 Calculation method: ISO 10156:2008 (E) - Draft
Database BAM
Publisher Datenbank BAM-Projekt CHEMSAFE
Language ENGL
2 2008 3.3 Mol% UTI: 5537-040-001/20111005
UTI: 5537-040-001/20111005;
Line no Limiting value for flammability (Tci)
  • recommended value
  • EU-standard
  • property of pure substance
1 3.3 Mol%
Bibliographic data
Year 2008
Title Draft for the revision of ISO 10156 "Gas cylinders – Gas and gas mixture – Determination of fire potential and oxidizing ability"
Subtitle Table 2 —Tci and Li values of flammable gases and vapours
Publisher ISO
Institution ISO - International Organization for Standardization
Language ENGL
Explosion limits
Lower explosion limit
1 2016 BAM 1.6 Vol% UTI: 5000-027-001/20111005
UTI: 5000-027-001/20111005;
Line no Lower explosion limit Upper explosion limit Maximum experimental safe gap Stoichiometric fraction of combustible substance in mixture with air Stoichiometric fraction of combustible substance in mixture with oxygen
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 1.6 Vol% 10 Vol% 0.89 mm 3.4 Mol% 14.3 Mol%
Bibliographic data
Year 2016
Title Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database BAM
Publisher Datenbank BAM-Projekt CHEMSAFE
Language GERM
2 1952 Coward, H. F.; Jones, G. W. 1.8 Vol% UTI: 5512-018-001/20111005
UTI: 5512-018-001/20111005;
Line no Lower explosion limit Upper explosion limit
  • property of pure substance
  • property of pure substance
1 1.8 Vol% [1] 9.7 Vol% [1]
[1] Upward propagation of flame in large vessels, open at their lower ends.
Bibliographic data
Title Limits of Flammability of Gases and Vapors (Bulletin 503)
Author Coward, H. F.; Jones, G. W.
Year 1952
Abstract English Explosion limits of individual gases in air, oxygen and nitrous oxide.
Abstract German Explosionsgrenzen von reinen Gasen in Luft, Sauerstoff und Distickstoffoxid.
Document Number Coward/Jon
Institution U.S. Bureau of Mines
Publisher United States Government Printing Office
Publisher City Washington
Language ENGL
3 1965 Zabetakis, M. G. 1.7 Vol% UTI: 5511-025-001/20111005
UTI: 5511-025-001/20111005;
Line no Lower explosion limit Upper explosion limit Autoignition Temperature
  • property of pure substance
  • property of pure substance
  • property of pure substance
1 1.7 Vol% 9.7 Vol% 325 °C
Bibliographic data
Title Flammability Characteristics of Combustible Gases and Vapors (Bulletin 627)
Author Zabetakis, M. G.
Year 1965
Abstract English Summary of limits of flammability and ignition temperatures of individual gases and vapors in air at atmospheric pressure. Appendix A, Table A-1. Explosion ranges, limits of flammability, maximum oxygen contents, and other safety data of flammable gas mixtures.
Abstract German Eine Zusammenstellung der Explosionsgrenzen und der Zündtemperaturen einiger brennbarer Gase und Dämpfe in Luft bei Atmosphärendruck; Appendix A, Tafel A-1. Explosionsbereiche, Explosionsgrenzen, maximale Sauerstoffanteile und andere sicherheitstechnische Kenngrößen von brennbaren Gasgemischen.
Document Number Zabetakis
Institution U.S. Bureau of Mines
URL https://www.osti.gov/servlets/purl/7328370
Publisher United States Government Printing Office
Publisher City Washington
Language ENGL
4 1985 Kuchta, J. M. 1.7 Vol% UTI: 5513-008-001/20111005
UTI: 5513-008-001/20111005;
Line no Lower explosion limit Upper explosion limit Autoignition Temperature
  • 25 °C, 1 bar
  • property of pure substance
  • 25 °C, 1 bar
  • property of pure substance
  • property of pure substance
1 1.7 Vol% 9.7 Vol% 325 °C
Bibliographic data
Title Investigation of Fire and Explosion Accidents in the Chemical, Mining, and Fuel-Related Industries - A Manual (Bulletin 680)
Author Kuchta, J. M.
Year 1985
Abstract English Summary of explosion limits, flash points, ignition temperatures and chemical-physical data of liquid and gaseous compounds (gaseous combustion in air at atmospheric pressure); Appendix A
Abstract German Zusammenstellung von Explosionsgrenzen, Flammpunkten, Zündtemperaturen und chemisch-physikalischen Daten von Flüssigkeiten und Gasen (Explosion in der Gasphase bei Atmosphärendruck); Appendix A
Document Number DEDO-117
Institution U.S. Bureau of Mines
Publisher United States Government Printing Office
Publisher City Washington
Language ENGL
5 1990 Nabert, K.; Schön, G. 37 g/m3 ± 10 % UTI: 5510-013-001/20111005
UTI: 5510-013-001/20111005;
Line no Lower explosion limit Lower explosion limit Upper explosion limit Upper explosion limit
  • at atmospheric pressure and room temperature
  • according to german standard
  • property of pure substance
  • according to german standard
  • property of pure substance
  • at atmospheric pressure and room temperature
  • according to german standard
  • property of pure substance
  • according to german standard
  • property of pure substance
1 37 g/m3 ± 10 % ⚠ 1.6 Vol% ± 10 % 235 g/m3 ± 5 % ⚠ 10 Vol% ± 5 %
⚠ The reference for the specification in g/m3 is the molar volume at 20 °C
Bibliographic data
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author Nabert, K.; Schön, G.
Year 1990
Publisher Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language GERM
6 1990 Nabert, K.; Schön, G. 1.6 Vol% ± 10 % UTI: 5510-013-001/20111005
UTI: 5510-013-001/20111005;
Line no Lower explosion limit Lower explosion limit Upper explosion limit Upper explosion limit
  • at atmospheric pressure and room temperature
  • according to german standard
  • property of pure substance
  • according to german standard
  • property of pure substance
  • at atmospheric pressure and room temperature
  • according to german standard
  • property of pure substance
  • according to german standard
  • property of pure substance
1 37 g/m3 ± 10 % ⚠ 1.6 Vol% ± 10 % 235 g/m3 ± 5 % ⚠ 10 Vol% ± 5 %
⚠ The reference for the specification in g/m3 is the molar volume at 20 °C
Bibliographic data
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author Nabert, K.; Schön, G.
Year 1990
Publisher Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language GERM
Upper explosion limit
1 2016 BAM 10 Vol% UTI: 5000-027-001/20111005
UTI: 5000-027-001/20111005;
Line no Lower explosion limit Upper explosion limit Maximum experimental safe gap Stoichiometric fraction of combustible substance in mixture with air Stoichiometric fraction of combustible substance in mixture with oxygen
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 1.6 Vol% 10 Vol% 0.89 mm 3.4 Mol% 14.3 Mol%
Bibliographic data
Year 2016
Title Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database BAM
Publisher Datenbank BAM-Projekt CHEMSAFE
Language GERM
2 1952 Coward, H. F.; Jones, G. W. 9.7 Vol% UTI: 5512-018-001/20111005
UTI: 5512-018-001/20111005;
Line no Lower explosion limit Upper explosion limit
  • property of pure substance
  • property of pure substance
1 1.8 Vol% [1] 9.7 Vol% [1]
[1] Upward propagation of flame in large vessels, open at their lower ends.
Bibliographic data
Title Limits of Flammability of Gases and Vapors (Bulletin 503)
Author Coward, H. F.; Jones, G. W.
Year 1952
Abstract English Explosion limits of individual gases in air, oxygen and nitrous oxide.
Abstract German Explosionsgrenzen von reinen Gasen in Luft, Sauerstoff und Distickstoffoxid.
Document Number Coward/Jon
Institution U.S. Bureau of Mines
Publisher United States Government Printing Office
Publisher City Washington
Language ENGL
3 1965 Zabetakis, M. G. 9.7 Vol% UTI: 5511-025-001/20111005
UTI: 5511-025-001/20111005;
Line no Lower explosion limit Upper explosion limit Autoignition Temperature
  • property of pure substance
  • property of pure substance
  • property of pure substance
1 1.7 Vol% 9.7 Vol% 325 °C
Bibliographic data
Title Flammability Characteristics of Combustible Gases and Vapors (Bulletin 627)
Author Zabetakis, M. G.
Year 1965
Abstract English Summary of limits of flammability and ignition temperatures of individual gases and vapors in air at atmospheric pressure. Appendix A, Table A-1. Explosion ranges, limits of flammability, maximum oxygen contents, and other safety data of flammable gas mixtures.
Abstract German Eine Zusammenstellung der Explosionsgrenzen und der Zündtemperaturen einiger brennbarer Gase und Dämpfe in Luft bei Atmosphärendruck; Appendix A, Tafel A-1. Explosionsbereiche, Explosionsgrenzen, maximale Sauerstoffanteile und andere sicherheitstechnische Kenngrößen von brennbaren Gasgemischen.
Document Number Zabetakis
Institution U.S. Bureau of Mines
URL https://www.osti.gov/servlets/purl/7328370
Publisher United States Government Printing Office
Publisher City Washington
Language ENGL
4 1985 Kuchta, J. M. 9.7 Vol% UTI: 5513-008-001/20111005
UTI: 5513-008-001/20111005;
Line no Lower explosion limit Upper explosion limit Autoignition Temperature
  • 25 °C, 1 bar
  • property of pure substance
  • 25 °C, 1 bar
  • property of pure substance
  • property of pure substance
1 1.7 Vol% 9.7 Vol% 325 °C
Bibliographic data
Title Investigation of Fire and Explosion Accidents in the Chemical, Mining, and Fuel-Related Industries - A Manual (Bulletin 680)
Author Kuchta, J. M.
Year 1985
Abstract English Summary of explosion limits, flash points, ignition temperatures and chemical-physical data of liquid and gaseous compounds (gaseous combustion in air at atmospheric pressure); Appendix A
Abstract German Zusammenstellung von Explosionsgrenzen, Flammpunkten, Zündtemperaturen und chemisch-physikalischen Daten von Flüssigkeiten und Gasen (Explosion in der Gasphase bei Atmosphärendruck); Appendix A
Document Number DEDO-117
Institution U.S. Bureau of Mines
Publisher United States Government Printing Office
Publisher City Washington
Language ENGL
5 1990 Nabert, K.; Schön, G. 235 g/m3 ± 5 % UTI: 5510-013-001/20111005
UTI: 5510-013-001/20111005;
Line no Lower explosion limit Lower explosion limit Upper explosion limit Upper explosion limit
  • at atmospheric pressure and room temperature
  • according to german standard
  • property of pure substance
  • according to german standard
  • property of pure substance
  • at atmospheric pressure and room temperature
  • according to german standard
  • property of pure substance
  • according to german standard
  • property of pure substance
1 37 g/m3 ± 10 % ⚠ 1.6 Vol% ± 10 % 235 g/m3 ± 5 % ⚠ 10 Vol% ± 5 %
⚠ The reference for the specification in g/m3 is the molar volume at 20 °C
Bibliographic data
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author Nabert, K.; Schön, G.
Year 1990
Publisher Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language GERM
6 1990 Nabert, K.; Schön, G. 10 Vol% ± 5 % UTI: 5510-013-001/20111005
UTI: 5510-013-001/20111005;
Line no Lower explosion limit Lower explosion limit Upper explosion limit Upper explosion limit
  • at atmospheric pressure and room temperature
  • according to german standard
  • property of pure substance
  • according to german standard
  • property of pure substance
  • at atmospheric pressure and room temperature
  • according to german standard
  • property of pure substance
  • according to german standard
  • property of pure substance
1 37 g/m3 ± 10 % ⚠ 1.6 Vol% ± 10 % 235 g/m3 ± 5 % ⚠ 10 Vol% ± 5 %
⚠ The reference for the specification in g/m3 is the molar volume at 20 °C
Bibliographic data
Title Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author Nabert, K.; Schön, G.
Year 1990
Publisher Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language GERM
Maximum experimental safe gap
1 2016 BAM 0.89 mm UTI: 5000-027-001/20111005
UTI: 5000-027-001/20111005;
Line no Lower explosion limit Upper explosion limit Maximum experimental safe gap Stoichiometric fraction of combustible substance in mixture with air Stoichiometric fraction of combustible substance in mixture with oxygen
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 1.6 Vol% 10 Vol% 0.89 mm 3.4 Mol% 14.3 Mol%
Bibliographic data
Year 2016
Title Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database BAM
Publisher Datenbank BAM-Projekt CHEMSAFE
Language GERM
Stoichiometric fraction of combustible substance in mixture with air
1 2016 BAM 3.4 Mol% UTI: 5000-027-001/20111005
UTI: 5000-027-001/20111005;
Line no Lower explosion limit Upper explosion limit Maximum experimental safe gap Stoichiometric fraction of combustible substance in mixture with air Stoichiometric fraction of combustible substance in mixture with oxygen
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 1.6 Vol% 10 Vol% 0.89 mm 3.4 Mol% 14.3 Mol%
Bibliographic data
Year 2016
Title Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database BAM
Publisher Datenbank BAM-Projekt CHEMSAFE
Language GERM
Stoichiometric fraction of combustible substance in mixture with oxygen
1 2016 BAM 14.3 Mol% UTI: 5000-027-001/20111005
UTI: 5000-027-001/20111005;
Line no Lower explosion limit Upper explosion limit Maximum experimental safe gap Stoichiometric fraction of combustible substance in mixture with air Stoichiometric fraction of combustible substance in mixture with oxygen
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • at atmospheric pressure and room temperature
  • property of pure substance
  • recommended value
  • property of pure substance
  • defined value
  • property of pure substance
  • defined value
  • property of pure substance
1 1.6 Vol% 10 Vol% 0.89 mm 3.4 Mol% 14.3 Mol%
Bibliographic data
Year 2016
Title Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database BAM
Publisher Datenbank BAM-Projekt CHEMSAFE
Language GERM

Loading, Please wait.... Loading...
