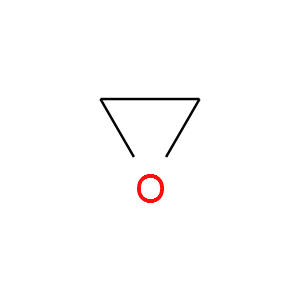

Oxirane

Disclaimer: The CLP/GHS classification is not regularly updated in Chemsafe. For up-to-date information, please use the ECHA database. ( https://echa.europa.eu/en/information-on-chemicals )

Boiling point

1

1990

Nabert, K.; Schön, G.

11 °C

UTI: 5510-005-002/20111005

UTI: 5510-005-002/20111005;

Line no	Boiling temperature	Critical temperature	Melting temperature	Relative gas density	Molar mass
	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value property of pure substance
1	11 °C	196 °C	-112 °C	1.52	44 g/mol

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

2

2016

BAM

10.5 °C

UTI: 5000-014-003/20111005

UTI: 5000-014-003/20111005;

Line no	Melting temperature	Boiling temperature	Molar mass	Relative gas density
	defined value at atmospheric pressure property of pure substance	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value property of pure substance
1	-112.6 °C	10.5 °C	44.053 g/mol	1.56

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Critical density

1

Critical Data

2016

BAM

0.314 g/cm3

UTI: 5000-014-004/20111005

Critical Data

UTI: 5000-014-004/20111005;

Line no	Critical temperature	Critical pressure	Critical density
	defined value property of pure substance	defined value property of pure substance	defined value property of pure substance
1	195.8 °C	7190 kPa	0.314 g/cm3

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Critical point

1

1990

Nabert, K.; Schön, G.

196 °C

UTI: 5510-005-002/20111005

UTI: 5510-005-002/20111005;

Line no	Boiling temperature	Critical temperature	Melting temperature	Relative gas density	Molar mass
	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value property of pure substance
1	11 °C	196 °C	-112 °C	1.52	44 g/mol

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

2

Critical Data

2016

BAM

195.8 °C

UTI: 5000-014-004/20111005

Critical Data

UTI: 5000-014-004/20111005;

Line no	Critical temperature	Critical pressure	Critical density
	defined value property of pure substance	defined value property of pure substance	defined value property of pure substance
1	195.8 °C	7190 kPa	0.314 g/cm3

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Density

1

2003

BAM

101.3 kPa

0 °C

1.965 kg/m3

UTI: 5560-073-001/20111005

UTI: 5560-073-001/20111005;

Line no	Temperature	Pressure	Density
	Parameter of the measurement property of pure substance	Parameter of the measurement property of pure substance	defined value property of pure substance
1	0 °C	101.3 kPa	1.965 kg/m3

Bibliographic data

Year	2003
Title	Gasatlas
Database	BAM
Language	GERM

2

2016

BAM

101.3 kPa

0 °C

1.965 kg/m3

UTI: 5016-058-001/20111005

UTI: 5016-058-001/20111005;

Line no	Temperature	Pressure	Density
	Parameter of the measurement property of pure substance	Parameter of the measurement property of pure substance	defined value property of pure substance
1	0 °C	101.3 kPa	1.965 kg/m3

Bibliographic data

Year	2016
Title	Recommended Densities of Pure Gases
Database	BAM
Language	GERM

Melting point

1

1990

Nabert, K.; Schön, G.

-112 °C

UTI: 5510-005-002/20111005

UTI: 5510-005-002/20111005;

Line no	Boiling temperature	Critical temperature	Melting temperature	Relative gas density	Molar mass
	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value property of pure substance
1	11 °C	196 °C	-112 °C	1.52	44 g/mol

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

2

2016

BAM

-112.6 °C

UTI: 5000-014-003/20111005

UTI: 5000-014-003/20111005;

Line no	Melting temperature	Boiling temperature	Molar mass	Relative gas density
	defined value at atmospheric pressure property of pure substance	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value property of pure substance
1	-112.6 °C	10.5 °C	44.053 g/mol	1.56

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Molar mass

1

1990

Nabert, K.; Schön, G.

44 g/mol

UTI: 5510-005-002/20111005

UTI: 5510-005-002/20111005;

Line no	Boiling temperature	Critical temperature	Melting temperature	Relative gas density	Molar mass
	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value property of pure substance
1	11 °C	196 °C	-112 °C	1.52	44 g/mol

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

2

2016

BAM

44.053 g/mol

UTI: 5000-014-003/20111005

UTI: 5000-014-003/20111005;

Line no	Melting temperature	Boiling temperature	Molar mass	Relative gas density
	defined value at atmospheric pressure property of pure substance	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value property of pure substance
1	-112.6 °C	10.5 °C	44.053 g/mol	1.56

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Relative gas density

1

1990

Nabert, K.; Schön, G.

1.52

UTI: 5510-005-002/20111005

UTI: 5510-005-002/20111005;

Line no	Boiling temperature	Critical temperature	Melting temperature	Relative gas density	Molar mass
	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value property of pure substance
1	11 °C	196 °C	-112 °C	1.52	44 g/mol

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

2

2006

1.56

UTI: 5594-060-001/20111005

UTI: 5594-060-001/20111005;

Line no	Relative gas density
	defined value property of pure substance
1	1.56

Bibliographic data

Year	2006
Title	DIN EN ISO 14912 Gas analysis - Conversion of gas mixture composition data (ISO 14912 :2003) German version EN ISO 14912:2006
Institution	DIN,Deutsches Institut für Normung e.V.
Language	ENGL

3

2016

BAM

1.56

UTI: 5000-014-003/20111005

UTI: 5000-014-003/20111005;

Line no	Melting temperature	Boiling temperature	Molar mass	Relative gas density
	defined value at atmospheric pressure property of pure substance	defined value at atmospheric pressure property of pure substance	defined value property of pure substance	defined value property of pure substance
1	-112.6 °C	10.5 °C	44.053 g/mol	1.56

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Autoignition Temperature

1

2016

BAM

435 °C

UTI: 5000-014-002/20111005

UTI: 5000-014-002/20111005;

Line no	Autoignition Temperature	Minimum ignition energy	Maximum experimental safe gap	Stoichiometric fraction of combustible substance in mixture with air	Stoichiometric fraction of combustible substance in mixture with oxygen
	recommended value according to german standard property of pure substance	recommended value experimental property of pure substance	recommended value property of pure substance	defined value property of pure substance	defined value property of pure substance
1	435 °C [A] [1]	0.061 mJ [2]	0.59 mm	7.7 Mol%	28.6 Mol%

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Test method: DIN 51794

[2] Content of combustible gas in the most ignitable atmosphere: 10.0 Vol%

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

2

1985

Kuchta, J. M.

429 °C

UTI: 5513-016-001/20111005

UTI: 5513-016-001/20111005;

Line no	Lower explosion limit	Upper explosion limit	Autoignition Temperature
	25 °C, 1 bar property of pure substance	25 °C, 1 bar property of pure substance	property of pure substance
1	3.6 Vol%	100 Vol%	429 °C

Bibliographic data

Title	Investigation of Fire and Explosion Accidents in the Chemical, Mining, and Fuel-Related Industries - A Manual (Bulletin 680)
Author	Kuchta, J. M.
Year	1985
Abstract English	Summary of explosion limits, flash points, ignition temperatures and chemical-physical data of liquid and gaseous compounds (gaseous combustion in air at atmospheric pressure); Appendix A
Abstract German	Zusammenstellung von Explosionsgrenzen, Flammpunkten, Zündtemperaturen und chemisch-physikalischen Daten von Flüssigkeiten und Gasen (Explosion in der Gasphase bei Atmosphärendruck); Appendix A
Document Number	DEDO-117
Institution	U.S. Bureau of Mines
Publisher	United States Government Printing Office
Publisher City	Washington
Language	ENGL

3

1990

Nabert, K.; Schön, G.

440 °C

UTI: 5510-005-001/20111005

UTI: 5510-005-001/20111005;

Line no	Lower explosion limit	Lower explosion limit	Upper explosion limit	Upper explosion limit	Autoignition Temperature	Maximum explosion pressure
	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	according to german standard property of pure substance	experimental property of pure substance
1	47 g/m3 ± 10 % ⚠	2.6 Vol% ± 10 %	1820 g/m3 ± 5 % [1] ⚠	100 Vol% ± 5 % [1]	440 °C [A] [2]	10.7 bar

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Upper explosion limit = 100 Vol% for decomposition

[2] Test method: DIN 51794 or comparable methods

⚠ The reference for the specification in g/m3 is the molar volume at 20 °C

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

4

1992

435 °C

UTI: 5500-015-002/20111005

UTI: 5500-015-002/20111005;

Line no	Autoignition Temperature
	according to german standard property of pure substance
1	435 °C [A] [1]

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Test method: DIN 51794

Bibliographic data

Year	1992
Title	Untersuchungsberichte des BAM-Laboratoriums II.22 Explosionsgrenzen, Zündtemperaturen und Stabilitätsgrenzdrücke brennbarer Gase und Gasgemische
Abstract English	Safety data of hydrocarbons, halogenated hydrocarbons, other organinc compounds, and inorganic compounds; Stability pressure limits of acetylene, propadiene, methylacetylene, and acetylene/gas mixtures (gas: hydrogen, nitrogen, propane, methane)
Abstract German	Sicherheitstechnische Kenngrößen von Kohlenwasserstoffen, halogenierten Kohlenwasserstoffen, anderen organischen Verbindungen und anorganischen Verbindungen; Stabilitätsgrenzdrücke von Acetylen, Propadien, Methylacetylen und Acetylen/Gas-Gemischen (Gas: Wasserstoff, Stickstoff, Propan, Methan)
Language	GERM

Rate of pressure rise

KG value

1

Influence of the ignition energy on the decomposition reaction

2005

Pekalski, A.A.; Zevenbergen, J.F.; Braithwaite, M.; Lemkowitz, S.M.; Pasman, H.J.

4 bar

100 °C

11.3 bar m/s ... 47.1 bar m/s

UTI: 5570-001-001/20111005

Influence of the ignition energy on the decomposition reaction

UTI: 5570-001-001/20111005;

Line no	Temperature	Pressure	Maximum explosion pressure	KG value	Maximum rate of pressure rise
	Parameter of the measurement experimental property of pure substance	Parameter of the measurement experimental property of pure substance	experimental property of pure substance	experimental property of pure substance	experimental property of pure substance
1	100 °C	4 bar	31.86 bar [1]	11.3 bar m/s [1]	41.71 bar/s [1]
2	100 °C	4 bar	33.73 bar [2]	21.5 bar m/s [2]	79.22 bar/s [2]
3	100 °C	4 bar	36.42 bar [3]	47.1 bar m/s [3]	173.54 bar/s [3]

[1] Apparatus: 20-litre spherical vessel ignition energy = 0.72 J soot is present

[2] Apparatus: 20-litre spherical vessel ignition energy = 180 J soot is present

[3] Apparatus: 20-litre spherical vessel ignition energy = 540 J

Bibliographic data

Title	Explosive decomposition of ethylene oxide at elevated condition: effect of ignition energy, nitrogen dilution, and turbulence
Author	Pekalski, A.A.; Zevenbergen, J.F.; Braithwaite, M.; Lemkowitz, S.M.; Pasman, H.J.
Year	2005
Journal Title	Journal of Hazardous Materials
Volume	118
Issue	1
Pages	19-34
Publisher	Elsevier
Abstract English	Investigation of explosive decomposition of ethylene oxide (EO) at fixed initial experimental parameters (T = 100 C, P = 4 bar) in a 20-l sphere was conducted. Safety-related parameters, namely the maximum explosion pressure, the maximum rate of pressure rise, and the KG values, were experimentally determined for pure ethylene oxide and ethylene oxide diluted with nitrogen. Soot formation was experimentally observed.
Abstract German	Die explosive Zersetzung von Ethylenoxid (EO) wurde bei festen Versuchsparametern (T = 100 C, P = 4 bar) in einem 20-L-Kugelautoklav untersucht. Sicherheitstechnische Kenngrößen, nämlich der maximale Explosionsdruck, die maximale Druckanstiegsrate und die KG Werte wurden experimentell für reines Ethylenoxid und mit Stickstoff verdünntem Ethylenoxid bestimmt. Rußbildung wurde experimentell beobachtet.
ISBN / ISSN	0304-3894
DOI	https://doi.org/10.1016/j.jhazmat.2004.09.029
Language	ENGL

2

Influence of the ignition energy on the decomposition reaction

2016

BAM

4 bar

100 °C

11.3 bar m/s ... 47.1 bar m/s

UTI: 5000-014-005/20111005

Influence of the ignition energy on the decomposition reaction

UTI: 5000-014-005/20111005;

Line no	Temperature	Pressure	Maximum explosion pressure	KG value	Maximum rate of pressure rise
	Parameter of the measurement experimental property of pure substance	Parameter of the measurement experimental property of pure substance	best available value experimental property of pure substance	best available value experimental property of pure substance	best available value experimental property of pure substance
1	100 °C	4 bar	31.86 bar [1]	11.3 bar m/s [1]	41.71 bar/s [1]
2	100 °C	4 bar	33.73 bar [2]	21.5 bar m/s [2]	79.22 bar/s [2]
3	100 °C	4 bar	36.42 bar [3]	47.1 bar m/s [3]	173.54 bar/s [3]

[1] Apparatus: 20-litre spherical vessel ignition energy = 0.72 J soot is present

[2] Apparatus: 20-litre spherical vessel ignition energy = 180 J soot is present

[3] Apparatus: 20-litre spherical vessel ignition energy = 540 J

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Maximum rate of pressure rise

1

Influence of the ignition energy on the decomposition reaction

2005

Pekalski, A.A.; Zevenbergen, J.F.; Braithwaite, M.; Lemkowitz, S.M.; Pasman, H.J.

4 bar

100 °C

41.71 bar/s ... 173.54 bar/s

UTI: 5570-001-001/20111005

Influence of the ignition energy on the decomposition reaction

UTI: 5570-001-001/20111005;

Line no	Temperature	Pressure	Maximum explosion pressure	KG value	Maximum rate of pressure rise
	Parameter of the measurement experimental property of pure substance	Parameter of the measurement experimental property of pure substance	experimental property of pure substance	experimental property of pure substance	experimental property of pure substance
1	100 °C	4 bar	31.86 bar [1]	11.3 bar m/s [1]	41.71 bar/s [1]
2	100 °C	4 bar	33.73 bar [2]	21.5 bar m/s [2]	79.22 bar/s [2]
3	100 °C	4 bar	36.42 bar [3]	47.1 bar m/s [3]	173.54 bar/s [3]

[1] Apparatus: 20-litre spherical vessel ignition energy = 0.72 J soot is present

[2] Apparatus: 20-litre spherical vessel ignition energy = 180 J soot is present

[3] Apparatus: 20-litre spherical vessel ignition energy = 540 J

Bibliographic data

Title	Explosive decomposition of ethylene oxide at elevated condition: effect of ignition energy, nitrogen dilution, and turbulence
Author	Pekalski, A.A.; Zevenbergen, J.F.; Braithwaite, M.; Lemkowitz, S.M.; Pasman, H.J.
Year	2005
Journal Title	Journal of Hazardous Materials
Volume	118
Issue	1
Pages	19-34
Publisher	Elsevier
Abstract English	Investigation of explosive decomposition of ethylene oxide (EO) at fixed initial experimental parameters (T = 100 C, P = 4 bar) in a 20-l sphere was conducted. Safety-related parameters, namely the maximum explosion pressure, the maximum rate of pressure rise, and the KG values, were experimentally determined for pure ethylene oxide and ethylene oxide diluted with nitrogen. Soot formation was experimentally observed.
Abstract German	Die explosive Zersetzung von Ethylenoxid (EO) wurde bei festen Versuchsparametern (T = 100 C, P = 4 bar) in einem 20-L-Kugelautoklav untersucht. Sicherheitstechnische Kenngrößen, nämlich der maximale Explosionsdruck, die maximale Druckanstiegsrate und die KG Werte wurden experimentell für reines Ethylenoxid und mit Stickstoff verdünntem Ethylenoxid bestimmt. Rußbildung wurde experimentell beobachtet.
ISBN / ISSN	0304-3894
DOI	https://doi.org/10.1016/j.jhazmat.2004.09.029
Language	ENGL

2

Influence of the ignition energy on the decomposition reaction

2016

BAM

4 bar

100 °C

41.71 bar/s ... 173.54 bar/s

UTI: 5000-014-005/20111005

Influence of the ignition energy on the decomposition reaction

UTI: 5000-014-005/20111005;

Line no	Temperature	Pressure	Maximum explosion pressure	KG value	Maximum rate of pressure rise
	Parameter of the measurement experimental property of pure substance	Parameter of the measurement experimental property of pure substance	best available value experimental property of pure substance	best available value experimental property of pure substance	best available value experimental property of pure substance
1	100 °C	4 bar	31.86 bar [1]	11.3 bar m/s [1]	41.71 bar/s [1]
2	100 °C	4 bar	33.73 bar [2]	21.5 bar m/s [2]	79.22 bar/s [2]
3	100 °C	4 bar	36.42 bar [3]	47.1 bar m/s [3]	173.54 bar/s [3]

[1] Apparatus: 20-litre spherical vessel ignition energy = 0.72 J soot is present

[2] Apparatus: 20-litre spherical vessel ignition energy = 180 J soot is present

[3] Apparatus: 20-litre spherical vessel ignition energy = 540 J

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Limiting value for flammability (Tci)

1

2016

BAM

4.8 Mol%

UTI: 5009-054-001/20111005

UTI: 5009-054-001/20111005;

Line no	Limiting value for flammability (Tci)
	recommended value EU-standard property of pure substance
1	4.8 Mol%

Bibliographic data

Year	2016
Title	Recommended Tci values of Gases for Determination of fire potential for the selection of cylinder valve outlets 4.6 Calculation method: ISO 10156:2008 (E) - Draft
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	ENGL

2

2008

4.8 Mol%

UTI: 5537-054-001/20111005

UTI: 5537-054-001/20111005;

Line no	Limiting value for flammability (Tci)
	recommended value EU-standard property of pure substance
1	4.8 Mol%

Bibliographic data

Year	2008
Title	Draft for the revision of ISO 10156 "Gas cylinders – Gas and gas mixture – Determination of fire potential and oxidizing ability"
Subtitle	Table 2 —Tci and Li values of flammable gases and vapours
Publisher	ISO
Institution	ISO - International Organization for Standardization
Language	ENGL

Explosion limits

Lower explosion limit

1

2016

BAM

101.3 kPa

20 °C

2.6 Mol%

UTI: 5000-014-001/20111005

UTI: 5000-014-001/20111005;

Line no	Temperature	Pressure	Lower explosion limit	Upper explosion limit
	Parameter of the measurement property of pure substance	Parameter of the measurement property of pure substance	recommended value according to german standard property of pure substance	recommended value according to german standard property of pure substance
1	20 °C	101.3 kPa	2.6 Mol% [A] [1]	100 Mol% [A] [1]

[A] DIN 51649-1: Determination of explosion limits of gases and gas/air mixtures; withdrawn, document was replaced by DIN EN 1839:2004-01

[1] Test method: DIN 51649-1;\ Upper explosion limit = 100 vol% for decomposition

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

2

1952

Coward, H. F.; Jones, G. W.

3 Vol% ... 3.6 Vol%

UTI: 5512-024-001/20111005

UTI: 5512-024-001/20111005;

Line no	Lower explosion limit	Upper explosion limit	Lower explosion limit	Upper explosion limit
	property of pure substance	property of pure substance	property of pure substance	property of pure substance
1	3 Vol% [1]	80 Vol% [1]	3.6 Vol% [2]	100 Vol% [2]

[1] Upward propagation of flame in large vessels, open at their lower ends.

[2] Closed or small vessels

Bibliographic data

Title	Limits of Flammability of Gases and Vapors (Bulletin 503)
Author	Coward, H. F.; Jones, G. W.
Year	1952
Abstract English	Explosion limits of individual gases in air, oxygen and nitrous oxide.
Abstract German	Explosionsgrenzen von reinen Gasen in Luft, Sauerstoff und Distickstoffoxid.
Document Number	Coward/Jon
Institution	U.S. Bureau of Mines
Publisher	United States Government Printing Office
Publisher City	Washington
Language	ENGL

3

1952

Coward, H. F.; Jones, G. W.

3 Vol% ... 3.6 Vol%

UTI: 5512-024-001/20111005

UTI: 5512-024-001/20111005;

Line no	Lower explosion limit	Upper explosion limit	Lower explosion limit	Upper explosion limit
	property of pure substance	property of pure substance	property of pure substance	property of pure substance
1	3 Vol% [1]	80 Vol% [1]	3.6 Vol% [2]	100 Vol% [2]

[1] Upward propagation of flame in large vessels, open at their lower ends.

[2] Closed or small vessels

Bibliographic data

Title	Limits of Flammability of Gases and Vapors (Bulletin 503)
Author	Coward, H. F.; Jones, G. W.
Year	1952
Abstract English	Explosion limits of individual gases in air, oxygen and nitrous oxide.
Abstract German	Explosionsgrenzen von reinen Gasen in Luft, Sauerstoff und Distickstoffoxid.
Document Number	Coward/Jon
Institution	U.S. Bureau of Mines
Publisher	United States Government Printing Office
Publisher City	Washington
Language	ENGL

4

1985

Kuchta, J. M.

3.6 Vol%

UTI: 5513-016-001/20111005

UTI: 5513-016-001/20111005;

Line no	Lower explosion limit	Upper explosion limit	Autoignition Temperature
	25 °C, 1 bar property of pure substance	25 °C, 1 bar property of pure substance	property of pure substance
1	3.6 Vol%	100 Vol%	429 °C

Bibliographic data

Title	Investigation of Fire and Explosion Accidents in the Chemical, Mining, and Fuel-Related Industries - A Manual (Bulletin 680)
Author	Kuchta, J. M.
Year	1985
Abstract English	Summary of explosion limits, flash points, ignition temperatures and chemical-physical data of liquid and gaseous compounds (gaseous combustion in air at atmospheric pressure); Appendix A
Abstract German	Zusammenstellung von Explosionsgrenzen, Flammpunkten, Zündtemperaturen und chemisch-physikalischen Daten von Flüssigkeiten und Gasen (Explosion in der Gasphase bei Atmosphärendruck); Appendix A
Document Number	DEDO-117
Institution	U.S. Bureau of Mines
Publisher	United States Government Printing Office
Publisher City	Washington
Language	ENGL

5

1990

Nabert, K.; Schön, G.

47 g/m3 ± 10 %

UTI: 5510-005-001/20111005

UTI: 5510-005-001/20111005;

Line no	Lower explosion limit	Lower explosion limit	Upper explosion limit	Upper explosion limit	Autoignition Temperature	Maximum explosion pressure
	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	according to german standard property of pure substance	experimental property of pure substance
1	47 g/m3 ± 10 % ⚠	2.6 Vol% ± 10 %	1820 g/m3 ± 5 % [1] ⚠	100 Vol% ± 5 % [1]	440 °C [A] [2]	10.7 bar

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Upper explosion limit = 100 Vol% for decomposition

[2] Test method: DIN 51794 or comparable methods

⚠ The reference for the specification in g/m3 is the molar volume at 20 °C

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

6

1990

Nabert, K.; Schön, G.

2.6 Vol% ± 10 %

UTI: 5510-005-001/20111005

UTI: 5510-005-001/20111005;

Line no	Lower explosion limit	Lower explosion limit	Upper explosion limit	Upper explosion limit	Autoignition Temperature	Maximum explosion pressure
	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	according to german standard property of pure substance	experimental property of pure substance
1	47 g/m3 ± 10 % ⚠	2.6 Vol% ± 10 %	1820 g/m3 ± 5 % [1] ⚠	100 Vol% ± 5 % [1]	440 °C [A] [2]	10.7 bar

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Upper explosion limit = 100 Vol% for decomposition

[2] Test method: DIN 51794 or comparable methods

⚠ The reference for the specification in g/m3 is the molar volume at 20 °C

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

7

1992

2.6 Vol%

UTI: 5500-015-001/20111005

UTI: 5500-015-001/20111005;

Line no	Lower explosion limit	Upper explosion limit
	according to german standard property of pure substance	according to german standard property of pure substance
1	2.6 Vol% [A] [1]	100 Vol% [A] [1]

[A] DIN 51649-1: Determination of explosion limits of gases and gas/air mixtures; withdrawn, document was replaced by DIN EN 1839:2004-01

[1] Test method: DIN 51649-1;\ Upper explosion limit = 100 vol% for decomposition

Bibliographic data

Year	1992
Title	Untersuchungsberichte des BAM-Laboratoriums II.22 Explosionsgrenzen, Zündtemperaturen und Stabilitätsgrenzdrücke brennbarer Gase und Gasgemische
Abstract English	Safety data of hydrocarbons, halogenated hydrocarbons, other organinc compounds, and inorganic compounds; Stability pressure limits of acetylene, propadiene, methylacetylene, and acetylene/gas mixtures (gas: hydrogen, nitrogen, propane, methane)
Abstract German	Sicherheitstechnische Kenngrößen von Kohlenwasserstoffen, halogenierten Kohlenwasserstoffen, anderen organischen Verbindungen und anorganischen Verbindungen; Stabilitätsgrenzdrücke von Acetylen, Propadien, Methylacetylen und Acetylen/Gas-Gemischen (Gas: Wasserstoff, Stickstoff, Propan, Methan)
Language	GERM

Upper explosion limit

1

2016

BAM

101.3 kPa

20 °C

100 Mol%

UTI: 5000-014-001/20111005

UTI: 5000-014-001/20111005;

Line no	Temperature	Pressure	Lower explosion limit	Upper explosion limit
	Parameter of the measurement property of pure substance	Parameter of the measurement property of pure substance	recommended value according to german standard property of pure substance	recommended value according to german standard property of pure substance
1	20 °C	101.3 kPa	2.6 Mol% [A] [1]	100 Mol% [A] [1]

[A] DIN 51649-1: Determination of explosion limits of gases and gas/air mixtures; withdrawn, document was replaced by DIN EN 1839:2004-01

[1] Test method: DIN 51649-1;\ Upper explosion limit = 100 vol% for decomposition

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

2

1952

Coward, H. F.; Jones, G. W.

80 Vol% ... 100 Vol%

UTI: 5512-024-001/20111005

UTI: 5512-024-001/20111005;

Line no	Lower explosion limit	Upper explosion limit	Lower explosion limit	Upper explosion limit
	property of pure substance	property of pure substance	property of pure substance	property of pure substance
1	3 Vol% [1]	80 Vol% [1]	3.6 Vol% [2]	100 Vol% [2]

[1] Upward propagation of flame in large vessels, open at their lower ends.

[2] Closed or small vessels

Bibliographic data

Title	Limits of Flammability of Gases and Vapors (Bulletin 503)
Author	Coward, H. F.; Jones, G. W.
Year	1952
Abstract English	Explosion limits of individual gases in air, oxygen and nitrous oxide.
Abstract German	Explosionsgrenzen von reinen Gasen in Luft, Sauerstoff und Distickstoffoxid.
Document Number	Coward/Jon
Institution	U.S. Bureau of Mines
Publisher	United States Government Printing Office
Publisher City	Washington
Language	ENGL

3

1952

Coward, H. F.; Jones, G. W.

80 Vol% ... 100 Vol%

UTI: 5512-024-001/20111005

UTI: 5512-024-001/20111005;

Line no	Lower explosion limit	Upper explosion limit	Lower explosion limit	Upper explosion limit
	property of pure substance	property of pure substance	property of pure substance	property of pure substance
1	3 Vol% [1]	80 Vol% [1]	3.6 Vol% [2]	100 Vol% [2]

[1] Upward propagation of flame in large vessels, open at their lower ends.

[2] Closed or small vessels

Bibliographic data

Title	Limits of Flammability of Gases and Vapors (Bulletin 503)
Author	Coward, H. F.; Jones, G. W.
Year	1952
Abstract English	Explosion limits of individual gases in air, oxygen and nitrous oxide.
Abstract German	Explosionsgrenzen von reinen Gasen in Luft, Sauerstoff und Distickstoffoxid.
Document Number	Coward/Jon
Institution	U.S. Bureau of Mines
Publisher	United States Government Printing Office
Publisher City	Washington
Language	ENGL

4

1985

Kuchta, J. M.

100 Vol%

UTI: 5513-016-001/20111005

UTI: 5513-016-001/20111005;

Line no	Lower explosion limit	Upper explosion limit	Autoignition Temperature
	25 °C, 1 bar property of pure substance	25 °C, 1 bar property of pure substance	property of pure substance
1	3.6 Vol%	100 Vol%	429 °C

Bibliographic data

Title	Investigation of Fire and Explosion Accidents in the Chemical, Mining, and Fuel-Related Industries - A Manual (Bulletin 680)
Author	Kuchta, J. M.
Year	1985
Abstract English	Summary of explosion limits, flash points, ignition temperatures and chemical-physical data of liquid and gaseous compounds (gaseous combustion in air at atmospheric pressure); Appendix A
Abstract German	Zusammenstellung von Explosionsgrenzen, Flammpunkten, Zündtemperaturen und chemisch-physikalischen Daten von Flüssigkeiten und Gasen (Explosion in der Gasphase bei Atmosphärendruck); Appendix A
Document Number	DEDO-117
Institution	U.S. Bureau of Mines
Publisher	United States Government Printing Office
Publisher City	Washington
Language	ENGL

5

1990

Nabert, K.; Schön, G.

1820 g/m3 ± 5 %

UTI: 5510-005-001/20111005

UTI: 5510-005-001/20111005;

Line no	Lower explosion limit	Lower explosion limit	Upper explosion limit	Upper explosion limit	Autoignition Temperature	Maximum explosion pressure
	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	according to german standard property of pure substance	experimental property of pure substance
1	47 g/m3 ± 10 % ⚠	2.6 Vol% ± 10 %	1820 g/m3 ± 5 % [1] ⚠	100 Vol% ± 5 % [1]	440 °C [A] [2]	10.7 bar

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Upper explosion limit = 100 Vol% for decomposition

[2] Test method: DIN 51794 or comparable methods

⚠ The reference for the specification in g/m3 is the molar volume at 20 °C

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

6

1990

Nabert, K.; Schön, G.

100 Vol% ± 5 %

UTI: 5510-005-001/20111005

UTI: 5510-005-001/20111005;

Line no	Lower explosion limit	Lower explosion limit	Upper explosion limit	Upper explosion limit	Autoignition Temperature	Maximum explosion pressure
	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	according to german standard property of pure substance	experimental property of pure substance
1	47 g/m3 ± 10 % ⚠	2.6 Vol% ± 10 %	1820 g/m3 ± 5 % [1] ⚠	100 Vol% ± 5 % [1]	440 °C [A] [2]	10.7 bar

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Upper explosion limit = 100 Vol% for decomposition

[2] Test method: DIN 51794 or comparable methods

⚠ The reference for the specification in g/m3 is the molar volume at 20 °C

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

7

1992

100 Vol%

UTI: 5500-015-001/20111005

UTI: 5500-015-001/20111005;

Line no	Lower explosion limit	Upper explosion limit
	according to german standard property of pure substance	according to german standard property of pure substance
1	2.6 Vol% [A] [1]	100 Vol% [A] [1]

[A] DIN 51649-1: Determination of explosion limits of gases and gas/air mixtures; withdrawn, document was replaced by DIN EN 1839:2004-01

[1] Test method: DIN 51649-1;\ Upper explosion limit = 100 vol% for decomposition

Bibliographic data

Year	1992
Title	Untersuchungsberichte des BAM-Laboratoriums II.22 Explosionsgrenzen, Zündtemperaturen und Stabilitätsgrenzdrücke brennbarer Gase und Gasgemische
Abstract English	Safety data of hydrocarbons, halogenated hydrocarbons, other organinc compounds, and inorganic compounds; Stability pressure limits of acetylene, propadiene, methylacetylene, and acetylene/gas mixtures (gas: hydrogen, nitrogen, propane, methane)
Abstract German	Sicherheitstechnische Kenngrößen von Kohlenwasserstoffen, halogenierten Kohlenwasserstoffen, anderen organischen Verbindungen und anorganischen Verbindungen; Stabilitätsgrenzdrücke von Acetylen, Propadien, Methylacetylen und Acetylen/Gas-Gemischen (Gas: Wasserstoff, Stickstoff, Propan, Methan)
Language	GERM

Maximum experimental safe gap

1

2016

BAM

0.59 mm

UTI: 5000-014-002/20111005

UTI: 5000-014-002/20111005;

Line no	Autoignition Temperature	Minimum ignition energy	Maximum experimental safe gap	Stoichiometric fraction of combustible substance in mixture with air	Stoichiometric fraction of combustible substance in mixture with oxygen
	recommended value according to german standard property of pure substance	recommended value experimental property of pure substance	recommended value property of pure substance	defined value property of pure substance	defined value property of pure substance
1	435 °C [A] [1]	0.061 mJ [2]	0.59 mm	7.7 Mol%	28.6 Mol%

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Test method: DIN 51794

[2] Content of combustible gas in the most ignitable atmosphere: 10.0 Vol%

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Maximum explosion pressure

1

1990

Nabert, K.; Schön, G.

10.7 bar

UTI: 5510-005-001/20111005

UTI: 5510-005-001/20111005;

Line no	Lower explosion limit	Lower explosion limit	Upper explosion limit	Upper explosion limit	Autoignition Temperature	Maximum explosion pressure
	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	at atmospheric pressure and room temperature according to german standard property of pure substance	according to german standard property of pure substance	according to german standard property of pure substance	experimental property of pure substance
1	47 g/m3 ± 10 % ⚠	2.6 Vol% ± 10 %	1820 g/m3 ± 5 % [1] ⚠	100 Vol% ± 5 % [1]	440 °C [A] [2]	10.7 bar

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Upper explosion limit = 100 Vol% for decomposition

[2] Test method: DIN 51794 or comparable methods

⚠ The reference for the specification in g/m3 is the molar volume at 20 °C

Bibliographic data

Title	Sicherheitstechnische Kennzahlen brennbarer Gase und Dämpfe (with 6. Supplement)
Author	Nabert, K.; Schön, G.
Year	1990
Publisher	Deutscher Eichverlag;Braunschweig (Pub.)
Abstract English	Safety values of about 1000 flammable gases and vapors: Explosion limits, ignition temperatures, flash points, explosion pressures.
Abstract German	Sicherheitstechnische Kenngrößen von ca. 1000 Gasen und Dämpfen: Explosionsgrenzen, Zündtemperaturen, Flammpunkte, Explosionsdrücke.
Language	GERM

2

Influence of the ignition energy on the decomposition reaction

2005

Pekalski, A.A.; Zevenbergen, J.F.; Braithwaite, M.; Lemkowitz, S.M.; Pasman, H.J.

4 bar

100 °C

31.86 bar ... 36.42 bar

UTI: 5570-001-001/20111005

Influence of the ignition energy on the decomposition reaction

UTI: 5570-001-001/20111005;

Line no	Temperature	Pressure	Maximum explosion pressure	KG value	Maximum rate of pressure rise
	Parameter of the measurement experimental property of pure substance	Parameter of the measurement experimental property of pure substance	experimental property of pure substance	experimental property of pure substance	experimental property of pure substance
1	100 °C	4 bar	31.86 bar [1]	11.3 bar m/s [1]	41.71 bar/s [1]
2	100 °C	4 bar	33.73 bar [2]	21.5 bar m/s [2]	79.22 bar/s [2]
3	100 °C	4 bar	36.42 bar [3]	47.1 bar m/s [3]	173.54 bar/s [3]

[1] Apparatus: 20-litre spherical vessel ignition energy = 0.72 J soot is present

[2] Apparatus: 20-litre spherical vessel ignition energy = 180 J soot is present

[3] Apparatus: 20-litre spherical vessel ignition energy = 540 J

Bibliographic data

Title	Explosive decomposition of ethylene oxide at elevated condition: effect of ignition energy, nitrogen dilution, and turbulence
Author	Pekalski, A.A.; Zevenbergen, J.F.; Braithwaite, M.; Lemkowitz, S.M.; Pasman, H.J.
Year	2005
Journal Title	Journal of Hazardous Materials
Volume	118
Issue	1
Pages	19-34
Publisher	Elsevier
Abstract English	Investigation of explosive decomposition of ethylene oxide (EO) at fixed initial experimental parameters (T = 100 C, P = 4 bar) in a 20-l sphere was conducted. Safety-related parameters, namely the maximum explosion pressure, the maximum rate of pressure rise, and the KG values, were experimentally determined for pure ethylene oxide and ethylene oxide diluted with nitrogen. Soot formation was experimentally observed.
Abstract German	Die explosive Zersetzung von Ethylenoxid (EO) wurde bei festen Versuchsparametern (T = 100 C, P = 4 bar) in einem 20-L-Kugelautoklav untersucht. Sicherheitstechnische Kenngrößen, nämlich der maximale Explosionsdruck, die maximale Druckanstiegsrate und die KG Werte wurden experimentell für reines Ethylenoxid und mit Stickstoff verdünntem Ethylenoxid bestimmt. Rußbildung wurde experimentell beobachtet.
ISBN / ISSN	0304-3894
DOI	https://doi.org/10.1016/j.jhazmat.2004.09.029
Language	ENGL

3

Influence of the ignition energy on the decomposition reaction

2016

BAM

4 bar

100 °C

31.86 bar ... 36.42 bar

UTI: 5000-014-005/20111005

Influence of the ignition energy on the decomposition reaction

UTI: 5000-014-005/20111005;

Line no	Temperature	Pressure	Maximum explosion pressure	KG value	Maximum rate of pressure rise
	Parameter of the measurement experimental property of pure substance	Parameter of the measurement experimental property of pure substance	best available value experimental property of pure substance	best available value experimental property of pure substance	best available value experimental property of pure substance
1	100 °C	4 bar	31.86 bar [1]	11.3 bar m/s [1]	41.71 bar/s [1]
2	100 °C	4 bar	33.73 bar [2]	21.5 bar m/s [2]	79.22 bar/s [2]
3	100 °C	4 bar	36.42 bar [3]	47.1 bar m/s [3]	173.54 bar/s [3]

[1] Apparatus: 20-litre spherical vessel ignition energy = 0.72 J soot is present

[2] Apparatus: 20-litre spherical vessel ignition energy = 180 J soot is present

[3] Apparatus: 20-litre spherical vessel ignition energy = 540 J

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Minimum ignition energy

1

2016

BAM

0.061 mJ

UTI: 5000-014-002/20111005

UTI: 5000-014-002/20111005;

Line no	Autoignition Temperature	Minimum ignition energy	Maximum experimental safe gap	Stoichiometric fraction of combustible substance in mixture with air	Stoichiometric fraction of combustible substance in mixture with oxygen
	recommended value according to german standard property of pure substance	recommended value experimental property of pure substance	recommended value property of pure substance	defined value property of pure substance	defined value property of pure substance
1	435 °C [A] [1]	0.061 mJ [2]	0.59 mm	7.7 Mol%	28.6 Mol%

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Test method: DIN 51794

[2] Content of combustible gas in the most ignitable atmosphere: 10.0 Vol%

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

2

1952

Calcote, H. F.; Gregory, C. A.; Barnett, C. M.; Gilmer, Ruth B.

0.061 mJ

UTI: 5505-003-001/20111005

UTI: 5505-003-001/20111005;

Line no	Minimum ignition energy
	experimental at room temperature property of pure substance
1	0.061 mJ [1]

[1] Content of combustible gas in the most ignitable atmosphere: 10.0 Vol%

Bibliographic data

Title	Spark Ignition Effects of Molecular Structure
Author	Calcote, H. F.; Gregory, C. A.; Barnett, C. M.; Gilmer, Ruth B.
Year	1952
Journal Title	Industrial & Engineering Chemistry
Volume	44
Issue	11
Pages	2656-2662
Publisher	American Chemical Society
Abstract English	An apparatus and the technique for determining the minimum ignition energy is described; the minimum ignition energies of several saturated and unsaturated hydrocarbons, substituted alkyls, aldehydes, ketones, esters, ethers, thio ethers, peroxides, aromatic compounds, cyclic compounds, and inorganic compounds are represented in form of diagramms.
Abstract German	Beschreibung einer Apparatur und der Messtechnik für die Bestimmung der Mindestzündenergie. Die Mindestzündenergien von einigen gesättigten und ungesättigten Kohlenwasserstoffen, substituierten Alkylen, Aldehyden, Ketonen, Estern, Ethern, Thioethern, Peroxiden, Aromaten, zyklischen Verbindungen und anorganischen Verbindungen werden in Form von Diagrammen dargestellt.
ISBN / ISSN	0019-7866
DOI	https://doi.org/10.1021/ie50515a048
Language	ENGL

Stability pressure limit

1

2016

BAM

20 °C ... 100 °C

25 mbar ... 225 mbar

UTI: 5000-014-006/20111005

UTI: 5000-014-006/20111005;

Line no	Temperature	Ignition energy at decomposition of gases	Stability pressure limit
	Parameter of the measurement experimental property of pure substance	defined value experimental property of pure substance	recommended value experimental property of pure substance
1	20 °C	13.5 J ... 15.3 J [1]	225 mbar [2]
2	50 °C	13.5 J ... 15.3 J [1]	100 mbar [2]
3	100 °C	13.5 J ... 15.3 J [1]	25 mbar [2]

[1] This ignition energy for decomposition of instable gases may not confound with the minimum ignition energy (s. Help)!

[2] Measurement abutted to bomb method (DIN EN 1839-B)

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

2

Stability pressure limit as a function of temperature

1970

Große-Wortmann, H.

10 °C ... 75 °C

0.333 bar ... 0.627 bar

UTI: 5585-000-001/20111005

Stability pressure limit as a function of temperature

UTI: 5585-000-001/20111005;

Line no	Temperature	Stability pressure limit
	Parameter of the measurement experimental property of pure substance	experimental property of pure substance
1	10 °C	0.627 bar [1]
2	20 °C	0.533 bar [1]
3	30 °C	0.533 bar [1]
4	45 °C	0.467 bar [1]
5	75 °C	0.333 bar [1]

[1] Calculated with compressibility factor at 15 °C

Bibliographic data

Title	Explosibler Zerfall von Äthylenoxid und Athylenoxid/Stickstoff- Mischungen
Author	Große-Wortmann, H.
Year	1970
Title German	Explosibler Zerfall von Äthylenoxid und Äthylenoxid/Stickstoff- Mischungen
Journal Title	Chemie Ingenieur Technik
Volume	42
Pages	85-86
Publisher	Chemie Ingenieur Technik
ISBN / ISSN	0009-286X
DOI	https://doi.org/10.1002/cite.330420208
Language	GERM

3

2006

Holtappels,K.

20 °C ... 100 °C

200 mbar ... 350 mbar

UTI: 5574-000-001/20111005

UTI: 5574-000-001/20111005;

Line no	Temperature	Ignition energy at decomposition of gases	Stability pressure limit
	Parameter of the measurement experimental property of pure substance	defined value experimental property of pure substance	experimental property of pure substance
1	20 °C	3.5 J ... 4.2 J [1]	350 mbar [2]
2	50 °C	3.5 J ... 4.2 J [1]	300 mbar [2]
3	100 °C	3.5 J ... 4.2 J [1]	200 mbar [2]

[1] This ignition energy for decomposition of instable gases may not confound with the minimum ignition energy (s. Help)!

[2] Measurement abutted to bomb method (DIN EN 1839-B)

Bibliographic data

Author	Holtappels,K.
Year	2006
Title	Internal Report on experimentally determined stability pressure limits of ethylene oxide in different temperatures and different ignition energies
Document Number	BAM
Abstract English	Stability pressure limits of ethylene oxide abutting on EN 1839-B. (14 litre sphere). Influence of the ignition energy and of the temperature was investigated.
Abstract German	Stabilitätsgrenzdrucke von Ethylenoxid, anlehnend an DIN EN 1839-B. (14-dm³-Kugelautoklav). Einfluss der Zündenergie und der Temperatur wurde untersucht.
Language	GERM

4

2006

Holtappels,K.

20 °C ... 100 °C

100 mbar ... 300 mbar

UTI: 5574-000-002/20111005

UTI: 5574-000-002/20111005;

Line no	Temperature	Ignition energy at decomposition of gases	Stability pressure limit
	Parameter of the measurement experimental property of pure substance	defined value experimental property of pure substance	experimental property of pure substance
1	20 °C	8.5 J ... 10 J [1]	300 mbar [2]
2	50 °C	8.5 J ... 10 J [1]	225 mbar [2]
3	100 °C	8.5 J ... 10 J [1]	100 mbar [2]

[1] This ignition energy for decomposition of instable gases may not confound with the minimum ignition energy (s. Help)!

[2] Measurement abutted to bomb method (DIN EN 1839-B)

Bibliographic data

Author	Holtappels,K.
Year	2006
Title	Internal Report on experimentally determined stability pressure limits of ethylene oxide in different temperatures and different ignition energies
Document Number	BAM
Abstract English	Stability pressure limits of ethylene oxide abutting on EN 1839-B. (14 litre sphere). Influence of the ignition energy and of the temperature was investigated.
Abstract German	Stabilitätsgrenzdrucke von Ethylenoxid, anlehnend an DIN EN 1839-B. (14-dm³-Kugelautoklav). Einfluss der Zündenergie und der Temperatur wurde untersucht.
Language	GERM

5

2006

Holtappels,K.

20 °C ... 100 °C

25 mbar ... 225 mbar

UTI: 5574-000-003/20111005

UTI: 5574-000-003/20111005;

Line no	Temperature	Ignition energy at decomposition of gases	Stability pressure limit
	Parameter of the measurement experimental property of pure substance	defined value experimental property of pure substance	experimental property of pure substance
1	20 °C	13.5 J ... 15.3 J [1]	225 mbar [2]
2	50 °C	13.5 J ... 15.3 J [1]	100 mbar [2]
3	100 °C	13.5 J ... 15.3 J [1]	25 mbar [2]

[1] This ignition energy for decomposition of instable gases may not confound with the minimum ignition energy (s. Help)!

[2] Measurement abutted to bomb method (DIN EN 1839-B)

Bibliographic data

Author	Holtappels,K.
Year	2006
Title	Internal Report on experimentally determined stability pressure limits of ethylene oxide in different temperatures and different ignition energies
Document Number	BAM
Abstract English	Stability pressure limits of ethylene oxide abutting on EN 1839-B. (14 litre sphere). Influence of the ignition energy and of the temperature was investigated.
Abstract German	Stabilitätsgrenzdrucke von Ethylenoxid, anlehnend an DIN EN 1839-B. (14-dm³-Kugelautoklav). Einfluss der Zündenergie und der Temperatur wurde untersucht.
Language	GERM

Stoichiometric fraction of combustible substance in mixture with air

1

2016

BAM

7.7 Mol%

UTI: 5000-014-002/20111005

UTI: 5000-014-002/20111005;

Line no	Autoignition Temperature	Minimum ignition energy	Maximum experimental safe gap	Stoichiometric fraction of combustible substance in mixture with air	Stoichiometric fraction of combustible substance in mixture with oxygen
	recommended value according to german standard property of pure substance	recommended value experimental property of pure substance	recommended value property of pure substance	defined value property of pure substance	defined value property of pure substance
1	435 °C [A] [1]	0.061 mJ [2]	0.59 mm	7.7 Mol%	28.6 Mol%

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Test method: DIN 51794

[2] Content of combustible gas in the most ignitable atmosphere: 10.0 Vol%

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM

Stoichiometric fraction of combustible substance in mixture with oxygen

1

2016

BAM

28.6 Mol%

UTI: 5000-014-002/20111005

UTI: 5000-014-002/20111005;

Line no	Autoignition Temperature	Minimum ignition energy	Maximum experimental safe gap	Stoichiometric fraction of combustible substance in mixture with air	Stoichiometric fraction of combustible substance in mixture with oxygen
	recommended value according to german standard property of pure substance	recommended value experimental property of pure substance	recommended value property of pure substance	defined value property of pure substance	defined value property of pure substance
1	435 °C [A] [1]	0.061 mJ [2]	0.59 mm	7.7 Mol%	28.6 Mol%

[A] DIN 51794: Testing of mineral oil hydrocarbons - Determination of ignition temperature; measurements are technically identical to those of ISO/IEC 80079-20-1 but results are treated differently.

[1] Test method: DIN 51794

[2] Content of combustible gas in the most ignitable atmosphere: 10.0 Vol%

Bibliographic data

Year	2016
Title	Recommended Safety Characteristics and Classifications of Flammable Gases and Gas Mixtures
Database	BAM
Publisher	Datenbank BAM-Projekt CHEMSAFE
Language	GERM
